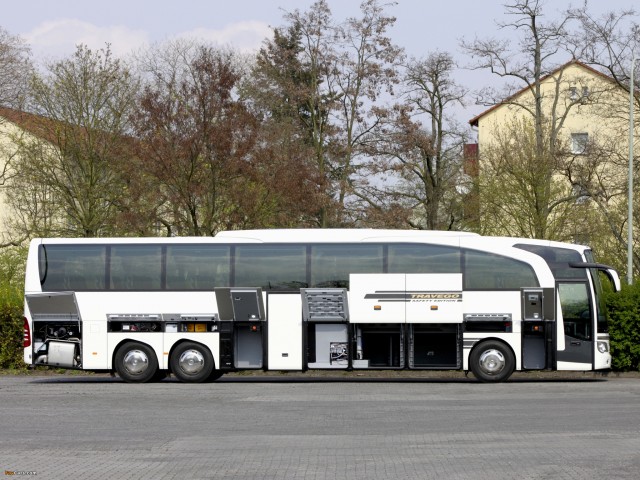

Mersedes TRavego

Passenger-carrying capacity

3-star - space between seats:	49/1/1
4-star - space between seats:	44/1/1
5-star - space between seats:	40/1/1

Dimensions

Length [mm]	12,140
Width [mm]	2550
Height [mm] including air conditioning	approx. 3710
Wheelbase, front axle - drive axle [mm]	6080
Wheelbase, drive axle - trailing axle [mm]	-
Tyre size	295/80 R 22.5
Front overhang [mm]	2760
Rear overhang [mm]	3300
Angle of approach [°]	7.65
Angle of departure [°]	6.9
Turning circle [mm]	20980
Track circle [mm]	16950

Engine & performance

Engine (standard)	Mercedes-Benz OM 457 LA
EU emissions standard	Euro 4
System	BlueTec®
Output [kW (hp)] max	315 (428)
Displacement [cm3]	11,967
Cylinders/arrangement	6 / in-line, vertical
Torque max. [Nm] at engine speed	2100 at 1100 rpm (Nm)
Transmission (standard), model	6-speed Mercedes-Benz GO 210, servo-assisted

Suspension

Steering	ZF 8098 Servocom
Front axle, model	Independent suspension
Drive axle, model	Mercedes-Benz HO 6
Trailing axle, model	-

Brakes

Service brake system	Electronic Braking System (EBS) with disc brakes
Additional retarding brake system	Hydrodynamic retarder (Voith)
Electropneumatic Braking System (EBS)	EBS

Driver assistance systems

Continuous braking limiter	x
Anti-lock braking system (ABS)	x
Acceleration skid control (ASR)	x
Electronic Stability Program ESP®	x
Brake Assist (BAS)	x
Proximity control (ART)	x (opt)
Lane Assist (SPA)	x (opt)
Front Collision Guard (FCG)	x
Active Brake Assist (ABA)	x (opt)
Reversing aids	Reversing pilot with visual display in exterior mirror

Weights

Tank capacity, diesel fuel [l]	~490
Tank capacity, AdBlue additive [l]	~61
Kerb weight [kg] [1]	-
Perm. GVW [kg] [2]	18,000
Front axle [kg]	7100
Drive axle [kg]	11,500
Trailing axle [kg] [3]	-

Doors

Entry height, door 1 [mm]	2070
Entry height, door 2 [mm]	1840
Entry width, door 1 [mm]	900
Entry width, door 2 [mm]	900
Inside height, front door [mm]	2010
Inside height, rear door [mm]	1815
Inside width, front door [mm]	770
Inside width, centre door [mm]	590 - 650 (depending on seat setting)
Entrance height over roadway, door 1 [mm]	~350
Entrance height over roadway, door 2 [mm]	~325
Step height in front entrance, door 1 [mm]	3 x 170 + 2 x 178
Step height in centre entrance, door 2 [mm]	4 x 250
Floor height driver’s area over roadway [mm]	~860
Floor height centre aisle over roadway [mm]	~1330
Platform height above floor level in centre aisle [mm]	150
Waist rail height above platforms [mm]	750

Heating/ventilation

Cooling output, passenger compartment [kW]	32
Heating output, passenger compartment [kW]	38
Cooling output, cockpit [kW]	8
Heating output, cockpit [kW]	18

Boot

Luggage compartment capacity [cu. m.]	approx. 9.6
Luggage compartment capacity [cu. m.] with toilet	approx. -1.2
Luggage compartment capacity [cu. m.] with toilet & driver rest area	approx. - 1.4
